Low Pressure Injection Molding Machine Barless Extruder Molding Machine
Low Pressure Injection Molding Machine
1. Description:
Clamping time is reduced by the Platen Lift System's original design. As a result, the toggle works less frequently and lasts longer.
In contrast to hydraulic clamping, our toggle clamping design meets the requirements of various molds while achieving high-speed, smooth clamping.
A dual injection system can inject at both high pressure and high speed.
The innovative injection unite design makes material tube replacement simpler by allowing the hydraulically charging motor to rotate 180 degrees from its initial position.
The robust injection structure keeps the injection union stable during hydraulic motor charging.
An alternative for improving safety and productivity is a slide or revolving table.
2. Sepcifications:
| Item | Unit | LZ-800-3V2R |
| Injection Unit | Screw Diameter | mm | Ø25 | Ø30 | Ø35 |
| Injection Pressure | Kg/cm2 | 2216 | 1892 | 1145 |
| Theoretical Shot Volume | cm3 | 213 | 264 | 319 |
| Shot Weight(PS) | g | 174 | 212 | 239 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 161 | 212 | 242 |
| Screw Stroke | mm | 145 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 122 |
| Nozzle Stroke | mm | 335 |
| Clamping Force | Clamping Force | tons | 120 |
| Opening Force | tons | 18 |
| Sliding Plate Size | mm | 550*521 |
| Plate Size | mm | 585*1270 |
| Rotary Table Diameter | mm | - |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 590*350 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 230 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.03 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 6 |
| Ejector Diameter | mm | 25 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 153 |
| Cold Water Volume | Liters/min | 166 |
| Servo Motor | kw | 20 |
| Heating Volume | kw | 15 |
| Total Wattage | kw | 30 |
| Others | Machine Weight | tons | 6.4 |
| Machine Size | m | --- |
3. Machine Features:
1) Performance is enhanced by the screw rod and nuts of the clamping unit, which reduce clamping cylinder stroke.
2) The working height is lower than in previous designs.
3) It is compatible with any insert component.

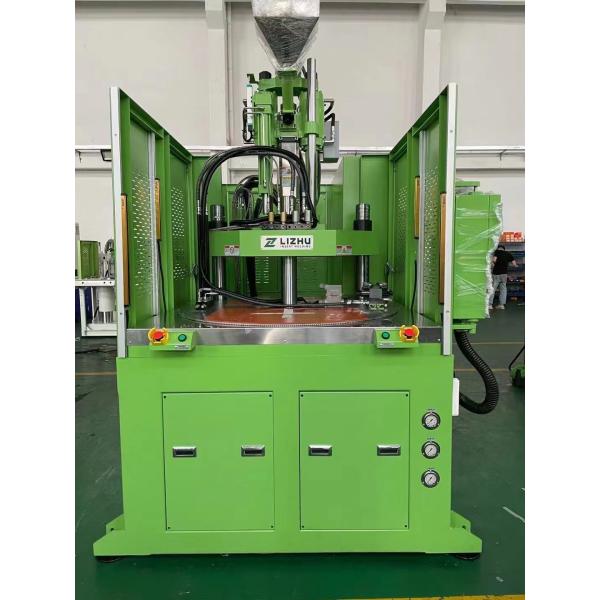

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Before beginning production, our skilled team will offer helpful design suggestions and conduct a final inspection prior to shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
