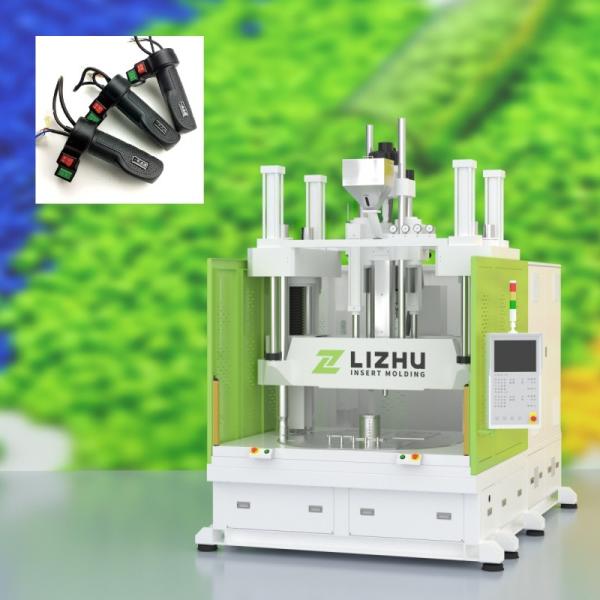

350ton PET Vertical Injection Moulding Machine
1. Description:
1.Design with vertical clamping and injection, particularly useful for insert molding production.
2.With 66 sets of mold memory, the user-friendly LCD display shows various functions.
3.Easy setting and accurate processing are guaranteed by injection and clamping that are controlled by multiple pressures and speeds.
4.For each section, the P.I.D. temperature control is accurate.
5.Smooth movement and precise molding are provided by the dual injection and carriage design.
6.Screw and barrel of professional design, suitable for a variety of plasticizing requirements.
7.Superior plasticizing capacity is ensured by a screw motor with high torque.
8.All moving units are fitted with oil-free bushings for improved cleanliness and ease of maintenance.
9.The structure of the high-rigid frame guarantees stable and smooth sliding.
2. Sepcifications:
| Item | Unit | LZ-LB |
| Injection Unit | Screw Diameter | mm | Ø20 | Ø25 | Ø30 |
| Injection Pressure | Kg/cm2 | 2160 | 1938 | 1208 |
| Theoretical Shot Volume | cm3 | 214 | 265 | 317 |
| Shot Weight(PS) | g | 176 | 212 | 234 |
| oz | 6.3 | 7.1 | 9.8 |
| Injection Rate | cm3/sec | 164 | 211 | 247 |
| Screw Stroke | mm | 160 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 129 |
| Nozzle Stroke | mm | 340 |
| Clamping Force | Clamping Force | tons | 66 |
| Opening Force | tons | 18 |
| Sliding Plate Size | mm | 550*540 |
| Plate Size | mm | 585*1150 |
| Rotary Table Diameter | mm | Ø1600 |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 570*350 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 250 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.02 |
| Ejector Unit | Ejector Stroke | mm | 50/130 |
| Ejector Force | Tons | 5 |
| Ejector Diameter | mm | 28 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 165 |
| Cold Water Volume | Liters/min | 150 |
| Servo Motor | kw | 20 |
| Heating Volume | kw | 17 |
| Total Wattage | kw | 34 |
| Others | Machine Weight | tons | 7.9 |
| Machine Size | m | * |
3. Machine Features:
With a rotational working table, the operator may more safely and conveniently insert and remove the product.
Rotary table design, better for automatic connection production to improve production, it is possible to equip it with one higher mold and two lower molds.
single person can operate it, reducing labor costs.
4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5)When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
