Plastic Pallet Injection Molding Machine
Plastic Pallet Injection Molding Machine Manufacturer From China
1. Description:
- An injection and vertical clamping design that is especially well suited to the production of insert molding.
- To ensure machine accuracy, stability, and dependability, uses parts from global brands.
- When in operation, a high-power motor ensures plasticizing capacity.
- A multilingual, user-friendly LCD display that shows various operations and operational circumstances.
2. Sepcifications:
| Item | Unit | LZ-LB |
| Injection Unit | Screw Diameter | mm | Ø35 | Ø40 | Ø45 |
| Injection Pressure | Kg/cm2 | 2200 | 1835 | 1208 |
| Theoretical Shot Volume | cm3 | 214 | 251 | 312 |
| Shot Weight(PS) | g | 178 | 219 | 236 |
| oz | 6.2 | 7.5 | 9.3 |
| Injection Rate | cm3/sec | 170 | 222 | 265 |
| Screw Stroke | mm | 160 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 134 |
| Nozzle Stroke | mm | 360 |
| Clamping Force | Clamping Force | tons | 200 |
| Opening Force | tons | 20 |
| Sliding Plate Size | mm | 570*560 |
| Plate Size | mm | 585*1130 |
| Rotary Table Diameter | mm | Ø1300 |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 560*345 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 245 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.03 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 8 |
| Ejector Diameter | mm | 20 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 145 |
| Cold Water Volume | Liters/min | 170 |
| Servo Motor | kw | 25 |
| Heating Volume | kw | 10 |
| Total Wattage | kw | 35 |
| Others | Machine Weight | tons | 5.8 |
| Machine Size | m | ***** |
3. Machine Features:
- An English LCD screen that can store 60 molds of data
- A double, three-position turntable that can accept different multi-mode insert processing and rotate smoothly can boost production and save labor expenses.
- The product withdrawal is safe, and the machine The identical task may be completed in the exterior position because embedding work does not constitute a station.
- The proportion of dual (pressure, flow)control, the speed, quietness, and protection against low pressure of the machine

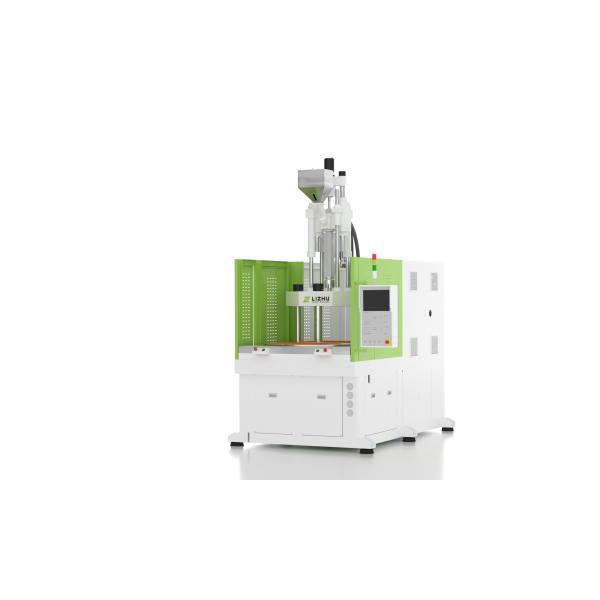

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
